Report Templates

Estimated reading time: 11 minutes

Aside from your seeded Transactional Reports, Interject Financials - Epicor allows you to build flexible financial statements from scratch using existing FRx row templates as a guide. Note that you must complete the initial review and confirmation steps in the Configuration Manager before you can begin creating Rollups and Row Templates for financial reports. Those steps are described in detail on the Configure page.

The following steps will walk through a single Balance Sheet creation, but the process will be the same for other sheets, such as a P and L.

To Do

Step 1: From the Configuration Manager screen, click on the “Setup/Review Rollups” link to go the Rollup Manager

Step 2: On the Rollup Manager screen, click on “Segment” in the “Add New Rollup” section and select a segment from the list. We will choose “Accounts” for this example.

Step 3: Click the “FRx Row Template” link and choose an FRx Row Template from the list. We’ll choose “BALSHT04” for this example.

Step 4: Hit the “Click to Add” button

Transaction Report 1

Account Rollup Screen

After hitting “Click to Add”, a new sheet will open with the FRx row template reference on the left and an empty template on the right. This is where you’ll set up the account rollup definitions and validation

To Do

Step 1: Title your “Rollup Code” with something descriptive. Rollup code titles do not accept spaces and must be 8 characters or fewer

Step 2: Type a brief description of the Rollup you’re creating

Step 3: Click the “Apply Validation” link and choose “Yes”

Step 4: Click “Row Type” on the left sheet, and choose both “Detail” and “Subtotal”, then click Pull FRx. This will help give you the “Detail Account Definitions” that define the rows of your report.

Step 5: In the “Validation Definition” field, begin typing the formula =JCombineSmart(), then double-click that formula from the menu

  • Step 5a: With the formula open, select all of the “Row Definitions” under the FRx Template Reference and hit enter. This will populate the “Validation Definition” with every FRx Definition needed.

  • Step 5b: Now select the the cell containing all the “Validation Definitions,” copy the cell, and paste it back into the same cell as Values using the “Special Paste” option in Excel

Account Rollup

Building Your Rollups

To Do

Step 1: Now write the codes for each Rollup in the “Rollup Section” column of your template using the FRx Template References. These will correspond to the subtotals in the FRx Template Reference section. The necessary prefixes will be attached automatically.

Step 2: In each row with a code, designate the “Order” in maganitudes of at least ten, then in the “Detail Account Definiton” column, use =JCombineSmart() again, selecting all necessary rows for each subtotaled section from FRx Template Reference

Step 3: Hit Ctrl+Shift+U or the “Save” Button to save

Account Rollup

Build Your Rows

To Do

Step 1: Go back to the Configuration Manager Welcome screen and then click the link to “Setup/Review Report Templates”

Step 2: In the “Row Template Manager”, click “Acct Rollup” to choose an account, and click “FRx Row Template” to choose the legacy row template as a reference. Then hit “Click to Add”.

Account Rollup

Step 3: In the new sheet that opens, give the row template a name, a description, and choose the “Rollup Definition” that you created in the previous step.

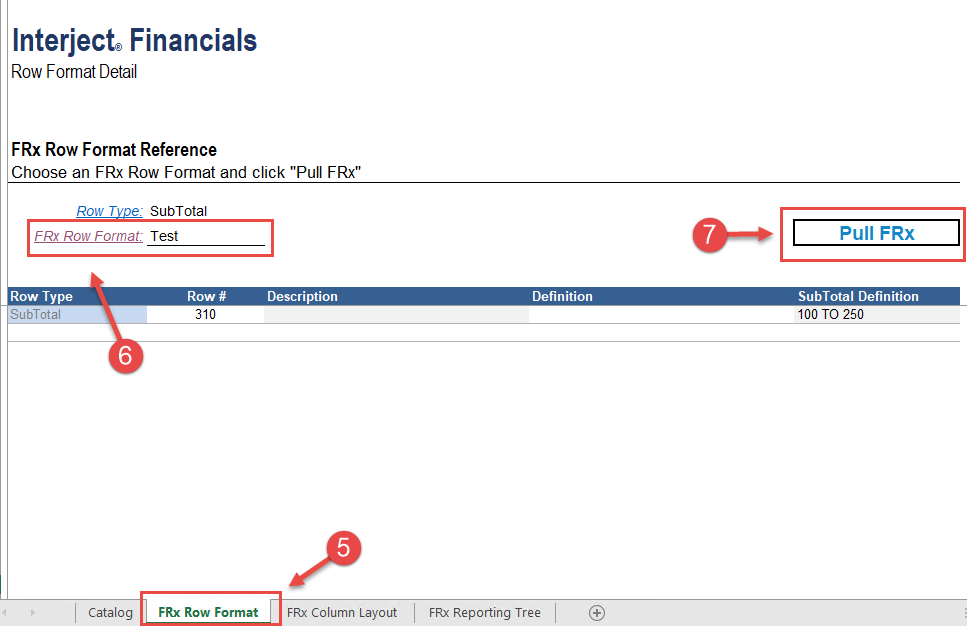

Step 4: In the FRx Row Template Reference section, choose the appropriate FRx Row Template and click “Pull FRx” Account Rollup Account Rollup

Step 5: Now, usinge the rollup code prefix, enter in the section on the right the detail codes corresponding to each of the subtotal sections on the left. Click on “Row Type” to toggle between “Detail”, “Subtotal”, or choose both

Note: When there is a calculation, as noted by a “+” rather than “TO”, you will need to build those claculation using the following syntax: “..” for ranges, “,” for discreet additions, and “,-“ for subtractions

Step 6: Add rows where necessary, and choose “detail”, “subtotal”, or “blank” to skip a row

Step 7: Enter your subtotal calculations in the “Subtotal Calc” column based on the row numbers you define for each entry

Step 8: Hit Ctrl+Shift+U or the Save button to save your work, then hit “Click to Create Report”

Account Rollup

The Report Template

To Do

Step 1: Once the Report Template is open, choose “Open Period” from the “Fiscal Period” link. You can leave “Company” open if desired

Step 2: Next, change the Actual columns from PTD to YTD

Step 3: In the right Actual column, click into the date and enter =EDate(, then click the “Fiscal Period” you chose previously, and close the argument with “,0”. This will make that column an absolute reference to your period of interest

Step 4: In the date cell of left column, enter **=EDate(\133,-1). This will reference the period of interest and subtract one month. You can add further columns to the right, using this notation, to build out your report completely. Account Rollup

Step 5: Now hit Ctrl+Shift+J or the Pull Data button on the Interject Ribbon

Adding Company Columns

To Do

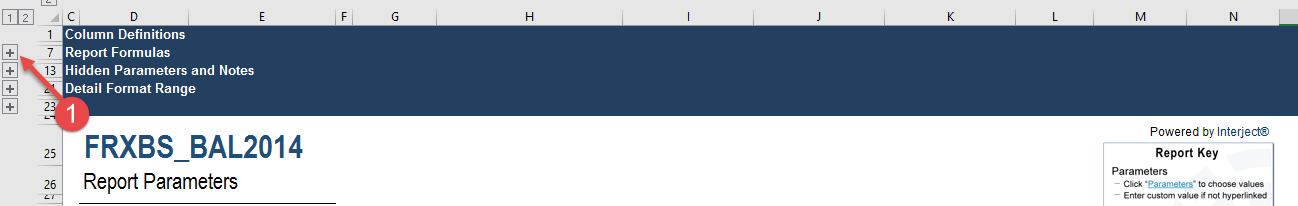

Step 1: Expand the “Column Definition” row by clicking on the “+” sign at the top left of the report Account Rollup

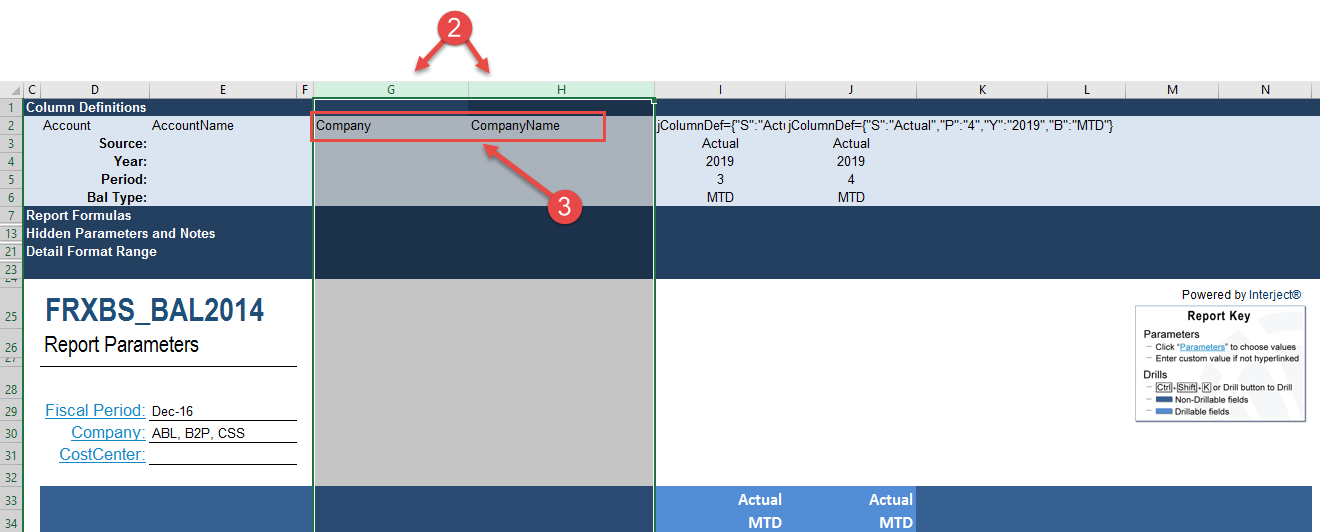

Step 2: Right click a column and choose “Insert Columns”.

Step 3: In row 2 of the column you added, type in “Company”, and in the row to its right, type “CompanyName.” This will bring in the company code and the friendly company name next time you pull. Account Rollup

Step 4: Add headings in the report area above where the data will come in.

Step 5: Choose your parameters.

Account Rollup

Step 6: Pull the report, then expand any of the collapsed rows to see the company code and name in the detail rows. Account Rollup

Account Rollup

Publishing the Report Template

To Do

Step 1: Once you confirm the report is built correctly, press Ctrl+Shift+J or the Pull Data button, and hit “Clear”

Step 2: With the data cleared, Hit Ctrl+Shift+T, and select “Freeze/Unfeeze Panes.” Now save the report as a local file

Step 3: Next, open the Report Library, highlight your company’s folder, right click inside the Report Links” area, and click “Save Current Workbook” > “Create New Link (Save Required)

Step 4: Fill in the Link Name and set the Status to Live. Your report is now published.
